| Place of Origin: | Hefei City China |
| Brand Name: | Midea Biomedical |
| Certification: | CE. ISO9001 ,UL |

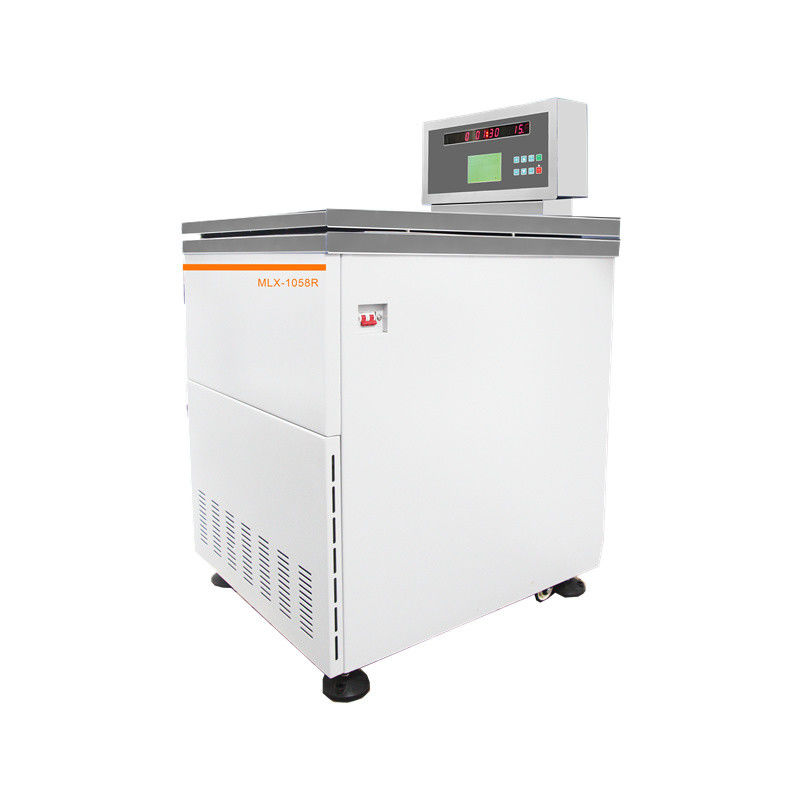

| Model Number: | MLX-1058R |
Workflow Innovation
A standout feature is the 6×1000ml horizontal swing rotor, which eliminates manual balancing for blood bags with weight differences up to 150g – a 3x improvement over industry standards. This enables single-batch processing of 6×400ml multi-blood bags or 24×100ml platelet transfer bags, significantly enhancing throughput for high-demand facilities. The programmable interface stores 10 acceleration/deceleration profiles, adaptable to protocols ranging from routine blood fractionation to delicate cell culture harvesting.
Safety & Compliance
Constructed with triple-layered stainless steel, the centrifuge meets ISO 13485 and CE safety standards, featuring auto-shutdown protocols for imbalance, overspeed, or temperature excursions. Pre-installed audit trails align with FDA 21 CFR Part 11 requirements, while optional GMP validation packages (IQ/OQ/PQ documentation) accelerate regulatory approvals for pharmaceutical partners.
Global Service Assurance
Backed by a 2-year global warranty (5 years on motor), Midea Bio-Medical provides localized technical support across 18 countries. Custom rotor configurations are available for compatibility with FDA/EU-approved blood bag systems, ensuring seamless integration into existing workflows.
| Model Name | MLX-1042R | MLX-1048R | MLX-1050R | MLX-1058R | MLX-1080R |
| Refrigerated | Yes | Yes | Yes | Yes | Yes |
| Max Speed (rpm) | 6000 |
6000 |
6000 | 6500 | 4200 |
| Max RCF(xg) | 5502 |
5502 |
5502 | 6680 | 5600 |
| Speed Accuracy(rpm) | ±10 | ||||
| Max Capacity | 300ml x4 |
5ml x120 |
5ml x120 |
1000mlx6
|
2400mlx6 |
| Power Supply | AC220V 50Hz 15A | AC220V 50Hz 15A | AC220V 50Hz 15A | AC220V 50Hz 30A |
AC220V 50Hz 50A
|
| Power | 1500W | 1800W | 2000W | 4500W | 7500W |
| Timer | 1s ~ 99h59min59s | ||||
| Temp. | -20℃~-40C | ||||
| Sound Level (dB(A)) | ≤60 |
≤62 |
≤62 | ≤65 | ≤65 |
| Display | LCD | LCD | LCD | LCD | LCD |
| Exterior Dimension (W*D*H mm) | 570×615x504 |
666x698x515 |
750x590x890 | 840x730x950 | 980×970×1180 |
| Net Weight (kg) | 95kg | 108kg | 120kg | 256kg |
590kg
|
