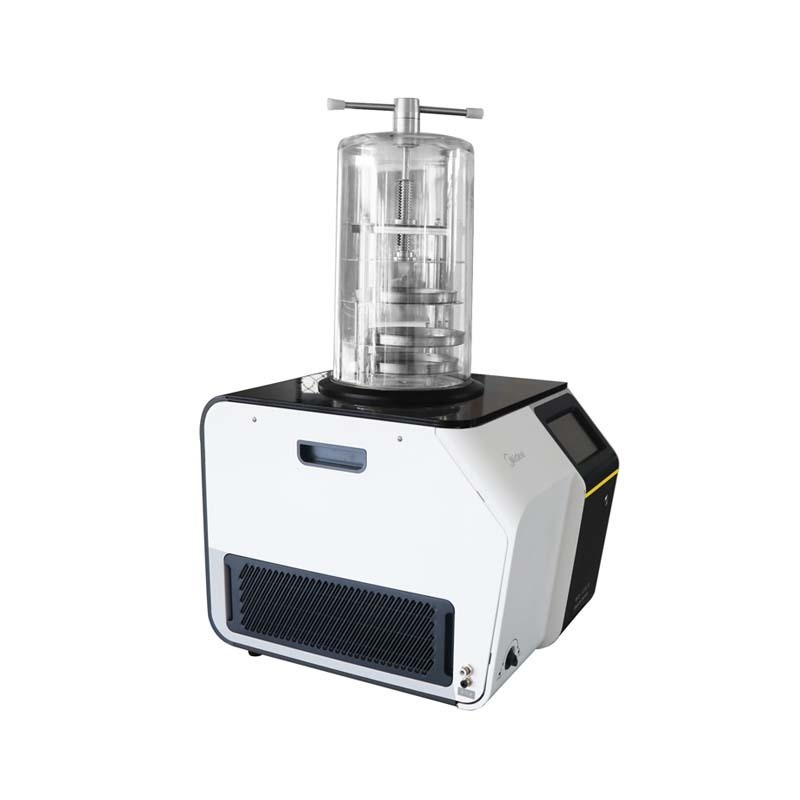

MD-10N/B Freeze Dryer with Pressure Cap GMP Compliant Seal Technology

Name: MD-10N/B Freeze Dryer with Pressure Cap GMP Compliant Seal Technology
Brand: Hefei Midea Biomedical Co., Ltd
SKU: MD-10N/A
Price: 2,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	Hefei City China
Brand Name:	Midea Biomedical
Certification:	CE. ISO9001 ,UL
Model Number:	MD-10N/A

Detail Information

Place of Origin:

Hefei City China

Brand Name:

Midea Biomedical

Certification:

CE. ISO9001 ,UL

Model Number:

MD-10N/A

Model No.:

MD-10N/B

Dryer Area(㎡）:

0.08

Ability To Capture Water(Kg/batch):

Schering Bottle Quantity Φ12mm:

560

Schering Bottle Quantity Φ16mm:

285

Schering Bottle Quantity Φ22mm:

165

Cold Chamber Size(mm):

Φ250×150

Cold Trap The Lowest Temperature(°C ):

≤-56 (No Load)

Ultimate Vacuum(Pa):

≤5 (No Load)

Power Consumption Kw.h(220V50Hz):

0.95

Amibient Temperature(°C ):

≤25

Overall Dimension(mm):

610(L)×482(W)×455(H)+440

Weight(kg):

Heating Temperature(°C ):

Highlight:

High Light

Highlight:

GMP compliant freeze dryer

freeze dryer with pressure cap

lab freeze dryer seal technology

Trading Information

Minimum Order Quantity:

10 unit

Price:

US $ 5000 / 1 unit

Packaging Details:

840mm*720mm*700mm

Delivery Time:

7 work day

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

8000 Units Per Year

Product Description

MD-10N/B Freeze Dryer with Pressure Cap GMP Compliant Seal Technology

product info.

MD-10N/B Integrated Freeze Dryer and Vial Sealing System

Consolidate your sample preservation workflow with this all-in-one sealing lyophilizer:

Vacuum Integrity: Seal vials at ≤0.01 mbar residual pressure with inert gas purging
Material Clarity: Monitor sublimation through high-tolerance polycarbonate chamber
Operational Efficiency: PID-controlled heating accelerates cycles by 25%
Data Transparency: Store 50+ profiles for instant replication of critical protocols
Heavy-Duty Reliability: Precision-cast 61kg frame mitigates vibration in sensitive labs

Unique value: Eliminates transfer steps between drying and sealing preserving sample integrity

Product Series Model Comparison

Model Name	MD-10N/A	MD-10N/B	MD-10N/C
Dryer area(㎡)	0.12	0.08	0.12
Ability to capture water(Kg/batch)	3
Schering bottle quantity Φ12mm	920	560	920
Schering bottle quantity Φ16mm	480	285	480
Schering bottle quantity Φ22mm	260	165	260
Eggplant shape bottle	0	0	8
Plate load capacity (L)	1.5	1	1.5
Plate size(mm)	Φ200	Φ180	Φ200
Plate distance (mm)	70
Tray quantity(pc)	4	3	4
Cold chamber size(mm)	Φ250×150
Cold trap the lowest temperature(°C)	≤-56 (No load)
Ultimate vacuum(Pa)	≤5 (No load)
Power Consumption kw.h(220V50Hz)	0.95
Amibient temperature(°C)	≤25
Overall dimension(mm)	610(L)×482(W)×455(H)+440
Weight(kg)	55	61	57
Heating Temperature(°C)	No
